BSA No 48 Single Spindle Automatic Screw Machines Spare Parts Catalogue 48PB/264 PDF Ebook Instant Download

BSA No 48 Single Spindle Automatic Screw Machines Spare Parts Catalogue 48PB/264 PDF

Instant Download After Purchase #Ebook ( Emailed Link )

Reference 000036

Book Size A4 With About 100 Pages.

Book Number 48PB/264

Book Date 1960s I Think.

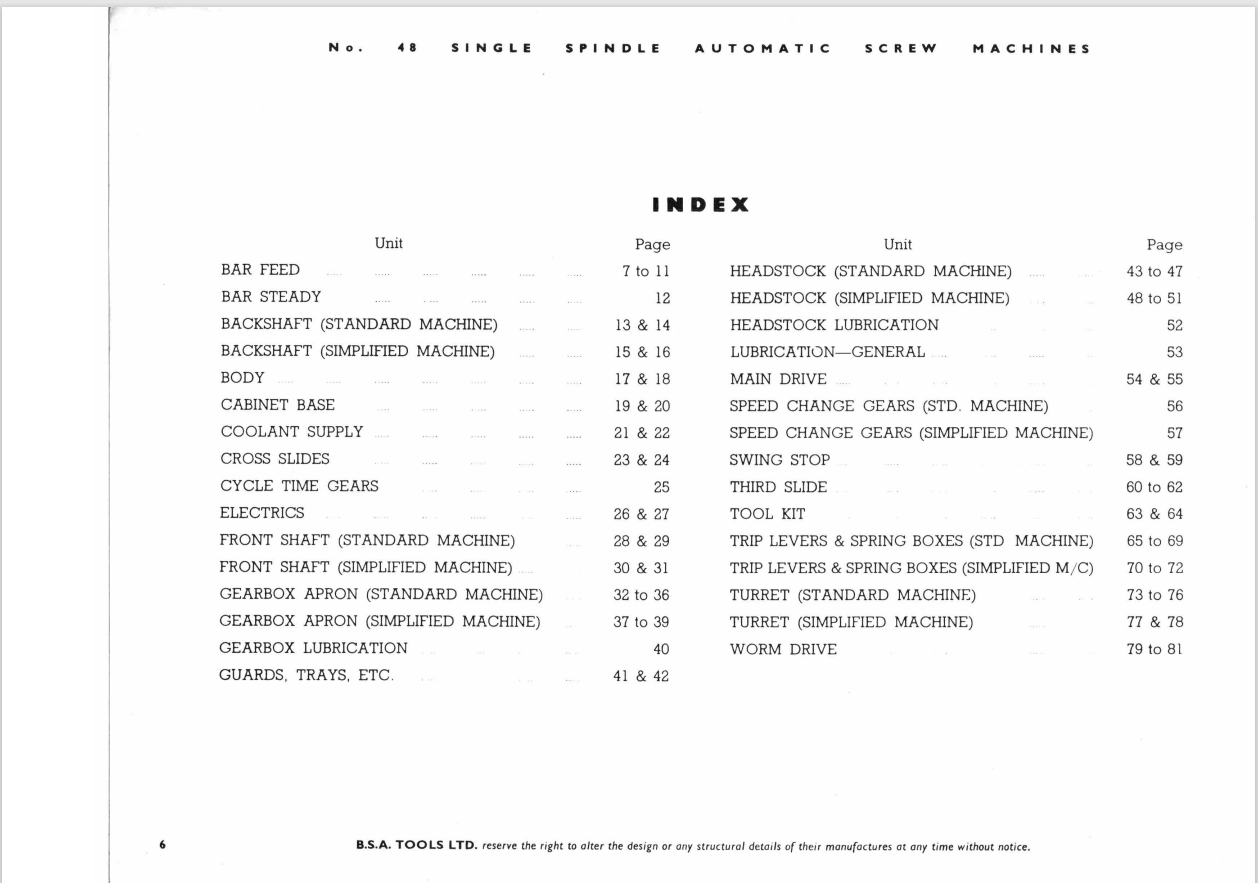

Contents

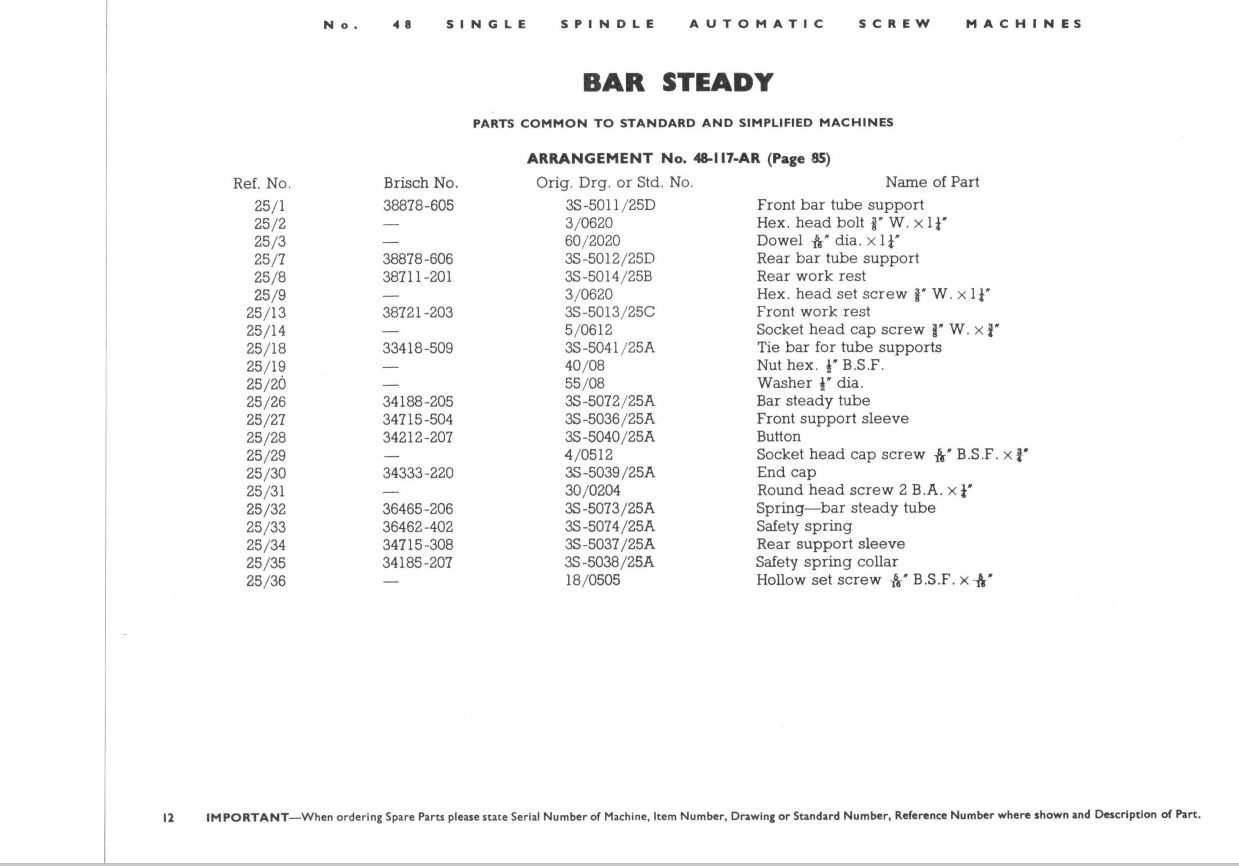

Bar Feed, Bar Steady, Backshaft ( Standard Machine ), Backshaft ( Simplified Machine )

Body, Cabinet Base, Coolant Supply, Cross Slides, Cycle Time Gears, Electrics,

Front Shaft ( Standard Machine ), Front Shaft ( Simplified Machine ),

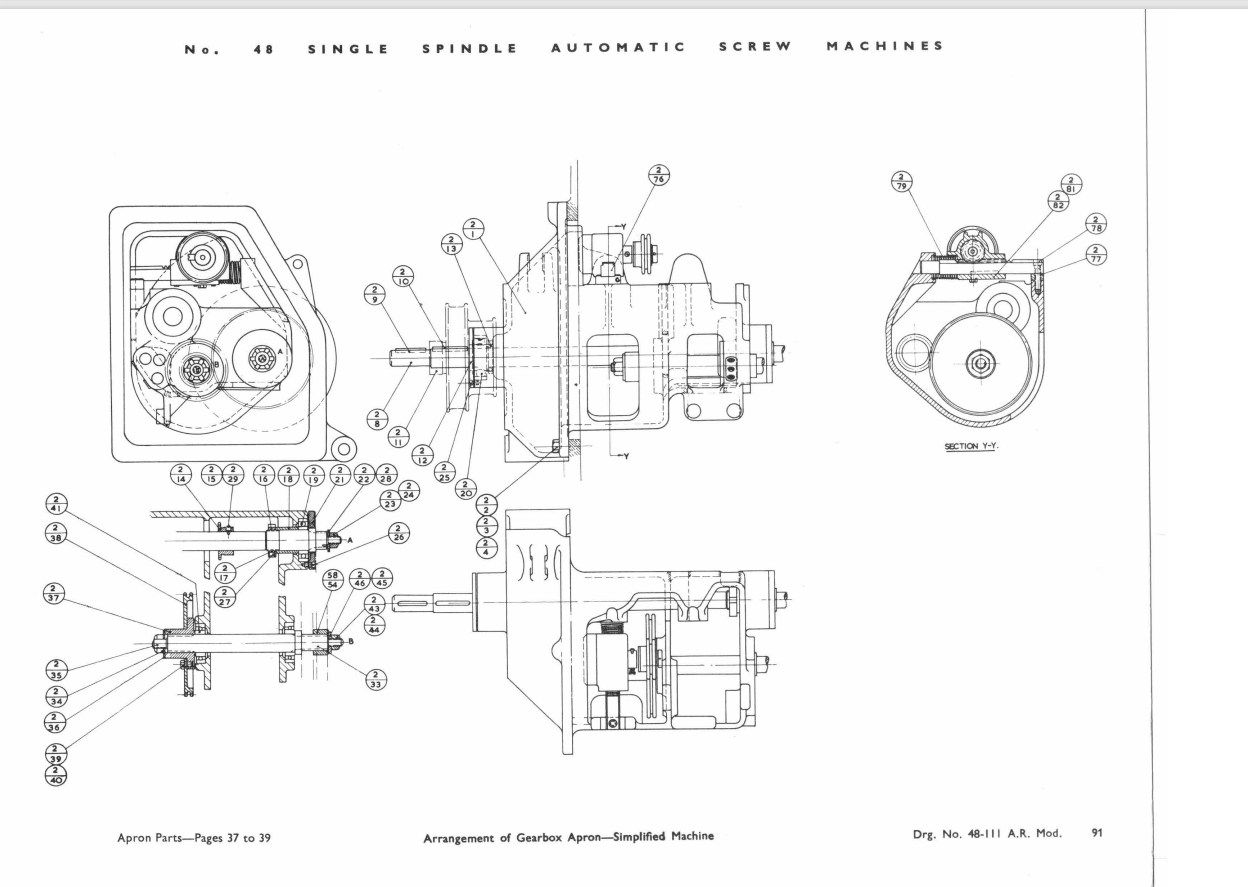

Gearbox Apron ( Standard Machine ), Gearbox Apron ( Simplified Machine ),

Gearbox Lubrication, Guards Trays Etc,

Headstock ( Standard Machine ), Headstock ( Simplified Machine ),

Headstock Lubrication, Lubrication General, Main Drive,

Speed Change Gears ( Standard Machine ), Speed Change Gears ( Simplified Machine ),

Swing Top, Third Slide, Tool Kit,

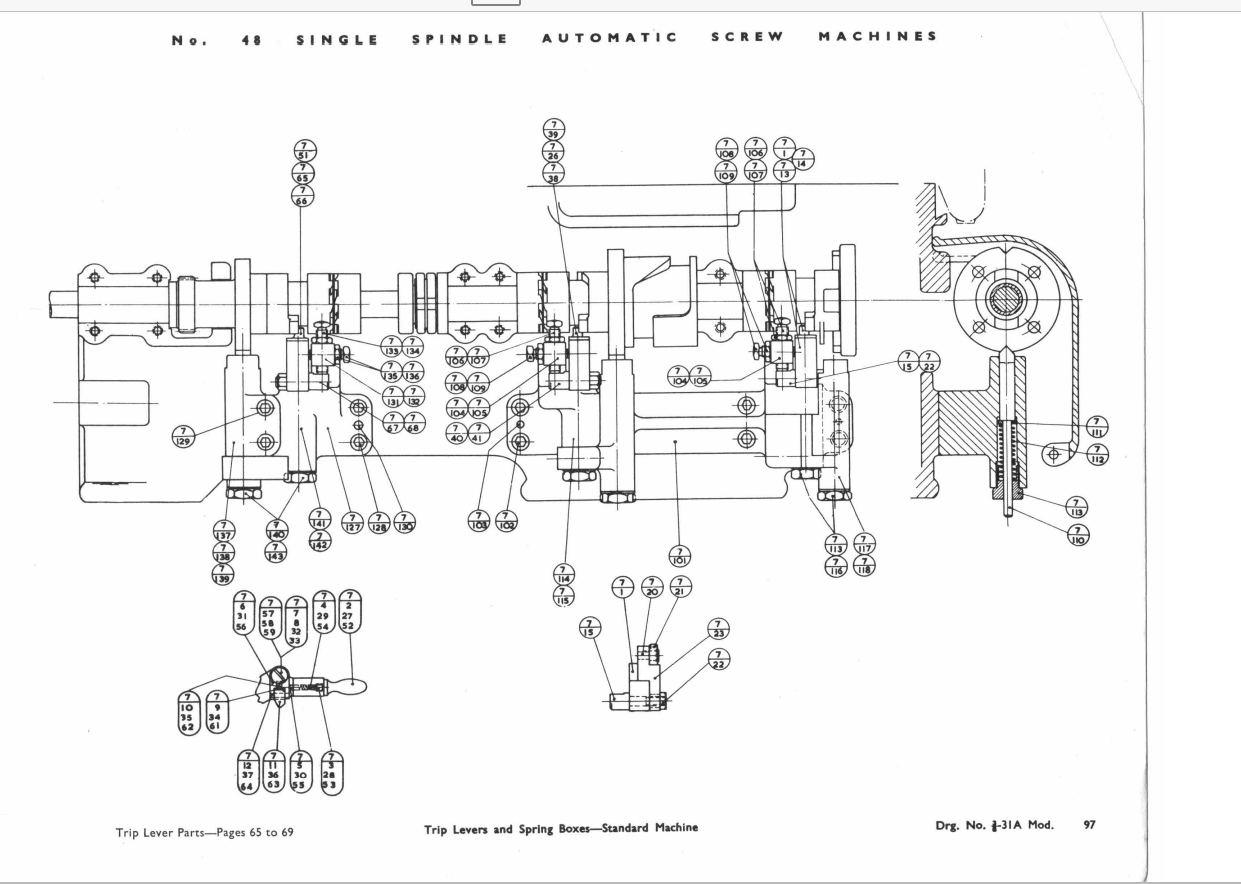

Trip Levers ( Standard Machine ), Trip Slide ( Simplified Machine ),

Turret ( Standard Machine ), Turret ( Simplified Machine ), Worm Drive.

Some ink marks and some light marks but scanned well

throughout and pages 2 and 3 are missing but does not affect the catalogue.

The full parts list is still there and fully legible.

Reference 000036
